Solargear SG0521MN

Solargear SG0521MN Solargear SG05

Product Summary

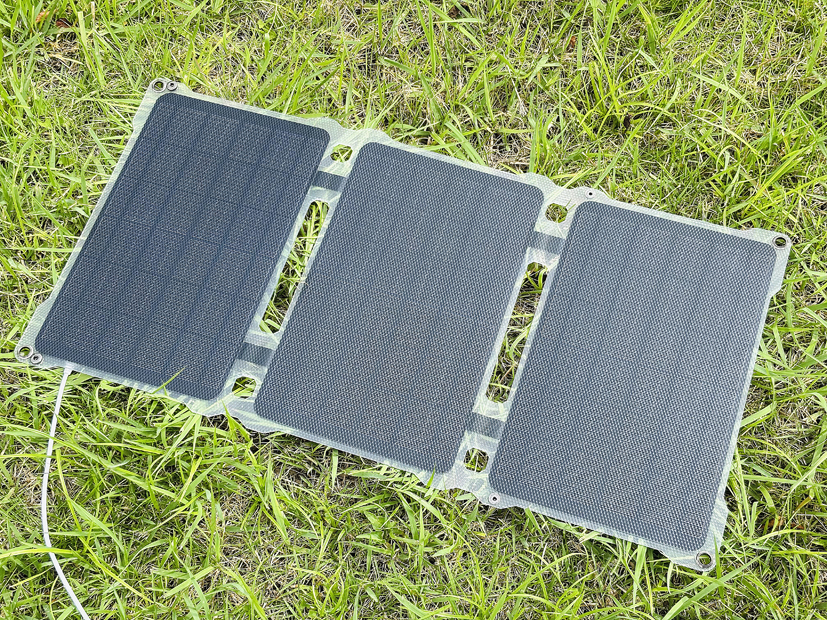

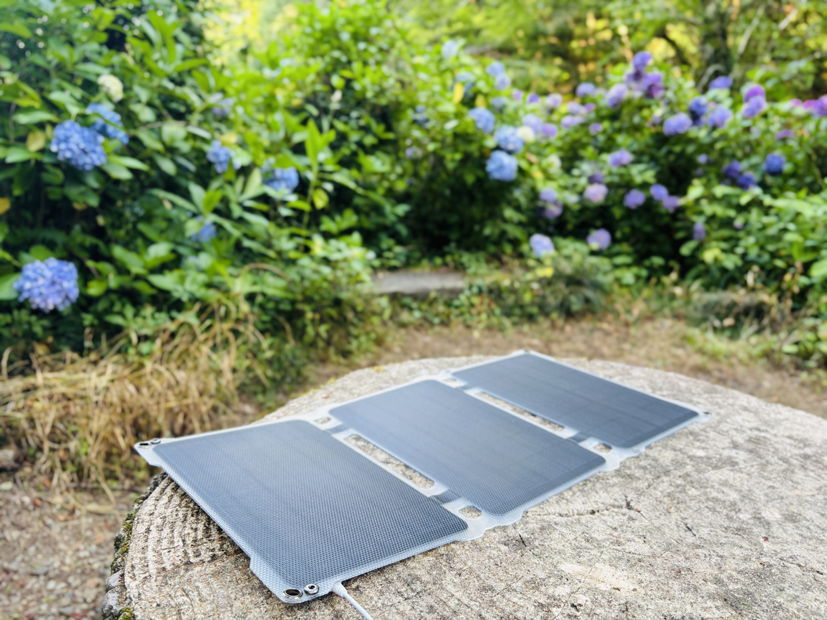

  • A light yet impact resistant A4 sized three fold solar panel for charging up to 2 mobile appliances, such as smartphones, tablets and mobile batteries by sunlight.

Applications

  • A solar charger designed for charging mobile appliances, such as smartphones, tablets and mobile batteries by sunlight.

    Features

  • No batteries or AC outlets necessary for safe charging and air transport all over the world.

Solargear SG0521MNSolargear SG0521MN

  • A light yet impact resistant A4 sized three fold solar panel with high performance mono crystalline solar cells with 24% efficiency laminated with better light transmitting and long life ETFE.

Solargear SG0521MN Solargear SG0521MN

  • IP67 dust and water proof solar panel with a USB Type-C port and a USB port with protection plugs.

Solargear SG0521MNSolargear SG0521MN

  • 2 mobile appliances or mobile batteries can be charged simultaneously with 5V/3.0A, 9V/2.2A or 12V/1.67A USB Type-C PD3.0 PPS/QC3.0/FCP/SCP/AFC/SPCP output and 5V/2.4A USB output.
Solargear SG0521MNSolargear SG0521MN
  • A red LED on the junction box indicates that the solar panel is working.
Solargear SG0521MNSolargear SG0521MN

Specifications

  • Materials: ETFE+EVA+mono crystalline solar cells+EVA+TPT+ETFE
  • Cell efficiency: 24%
  • Max. output*: USB Type-C: 5V/3.0A 9V/2.2A 12V/1.67A USB: 5V/2.4A
    *panel temperature 25ºC AM1.5 1kW/m2
  • Dimensions: 580X293X3mm (unfolded) 293X192X32mm (folded)
  • Weight: approx. 680g (excl. accessories)
  • Mounting holes: 8mm grommet X 4
  • Output terminals: a USB Type-C port and a USB port with protection plugs
  • Output controllers: PD3.0 PPS/QC3.0/FCP/SCP/AFC/SPCP
  • Charging indicator: a red LED
  • Protection level: IP67
  • Operating temperature: -10 - 60ºC
  • Made in China

    Warranty

  • 1 year from the date of purchase

Design and specifications are subject to change without notice.
