Ref. SG0521MNE Price in Japan: JPY6,980

Operating Instructions Manual (PDF)

Product Summary

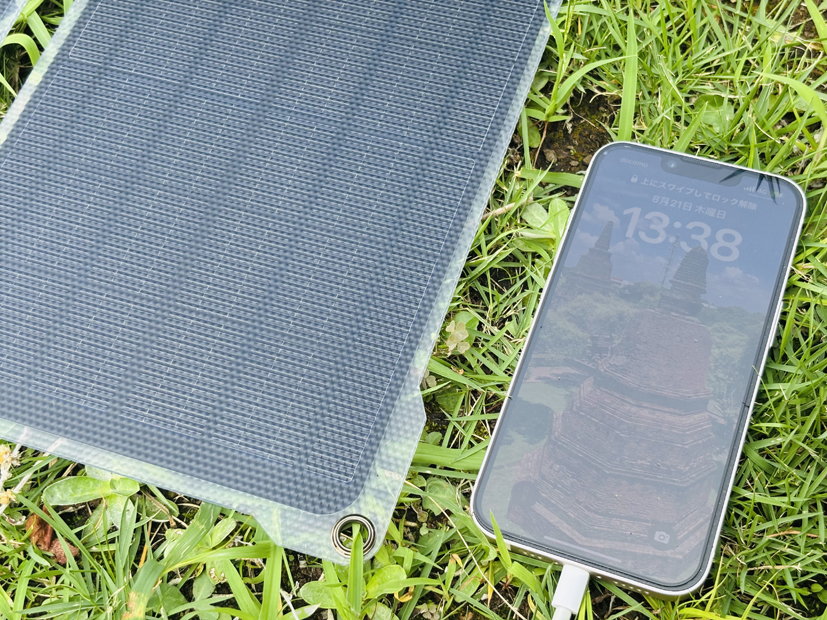

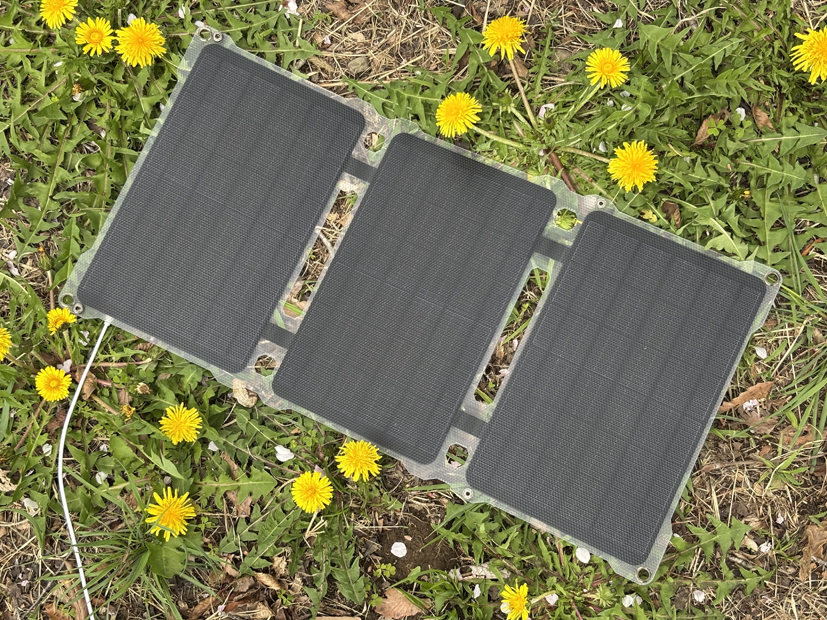

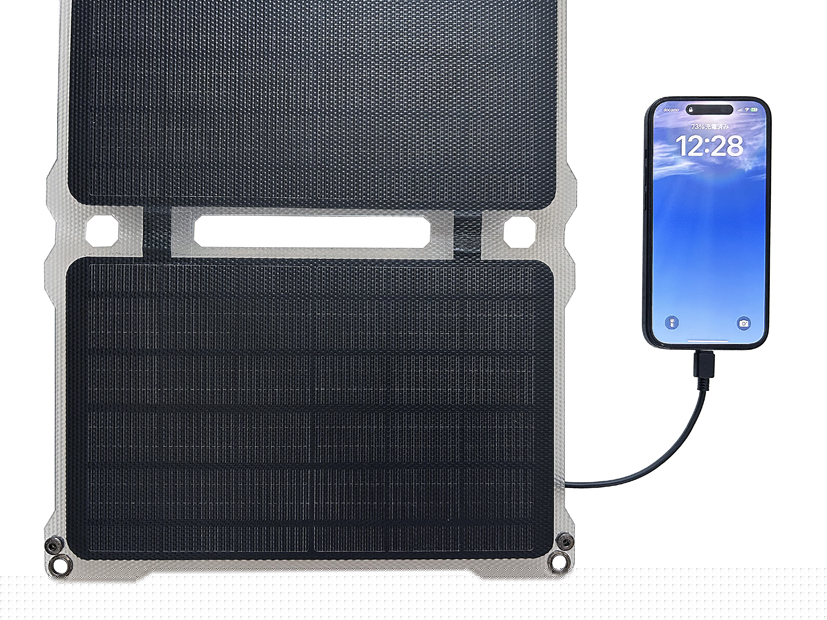

• A light yet impact resistant A4 sized three fold solar panel for charging high capacity mobile appliances, such as smartphones, tablets and mobile batteries by sunlight.

Applications

• A solar charger designed for charging mobile appliances, such as smartphones, tablets and mobile batteries by sunlight.


  Features

• No batteries or AC outlets necessary for safe charging and air transport all over the world.


• A light yet impact resistant A4 sized three fold solar panel with high performance mono crystalline solar cells with 24% efficiency laminated with better light transmitting and long life ETFE.

• IP67 dust and water proof solar panel with a USB port with protection plug.


• High capacity mobile appliances or mobile batteries can be charged with 5V/2.4A USB output.

• Eqipped with an auto-resume charging function for fool-proof charging under unsettled weather.

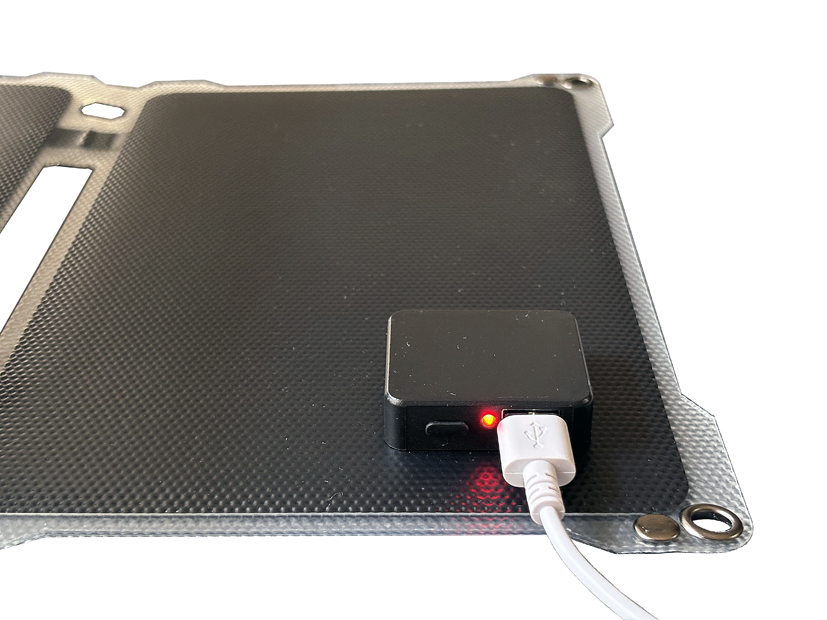

• A red LED on the junction box indicates that the solar panel is working.

• Materials: ETFE＋EVA+mono crystalline solar cells＋EVA＋TPT＋ETFE
• Cell efficiency: 24%
• Max. output*: USB: 5V/2.4A
  *panel temperature 25ºC AM1.5 1kW/m2
• Dimensions: 580X293X3mm (unfolded) 293X192X32mm (folded)
• Weight: approx. 680g (excl. accessories)
• Mounting holes: 8mm grommet X 4
• Output terminals: a USB port with protection plug
• Safety features: DC-DC converter with auto-resume charging function
• Charging indicator: a red LED
• Protection level: IP67
• Operating temperature: -10 - 60ºC
• Made in China

Warranty

• 1 year from the date of purchase

Design and specifications are subject to change without notice.
