Price in Japan: JPY272,800
Product Summary

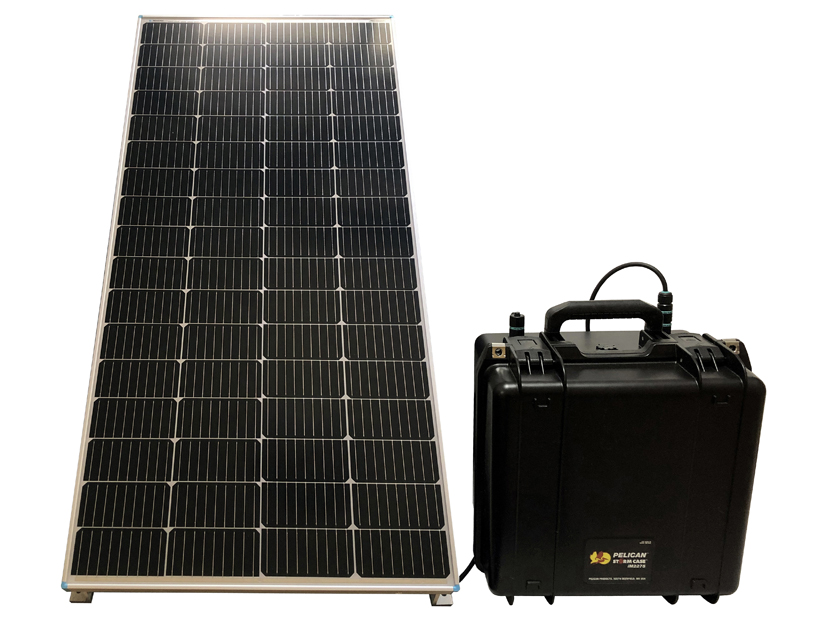

- Mobile PV systems with mono crystalline solar panels
with tilt mounts and and semi-solid-state LiFePO4 battery compartments
designed for powering a broad range of appliances. Composed
of highly efficient solar panels and safe, weather-resistant, high-energy-density
and long life battery compartments for ultimate
versatility, expandability, portability, weather resistance and durability
in business, disaster preparedness, leisure and everyday living.
Applications
-
Charging the built-in semi-solid-state LiFePO4 battery by sunlight, and powering a broad range of appliances through AC100V pure sine wave (inverter outlet, dust and water proof connectors) and DC12V (charge controller terminals, dust and water proof connectors) output. A built-in nightlight function can control DC12V load such as LED light at night and is widely programmable.
 |
 |
|
AC100V indoors
|
AC100V outdoors
|
Features
-

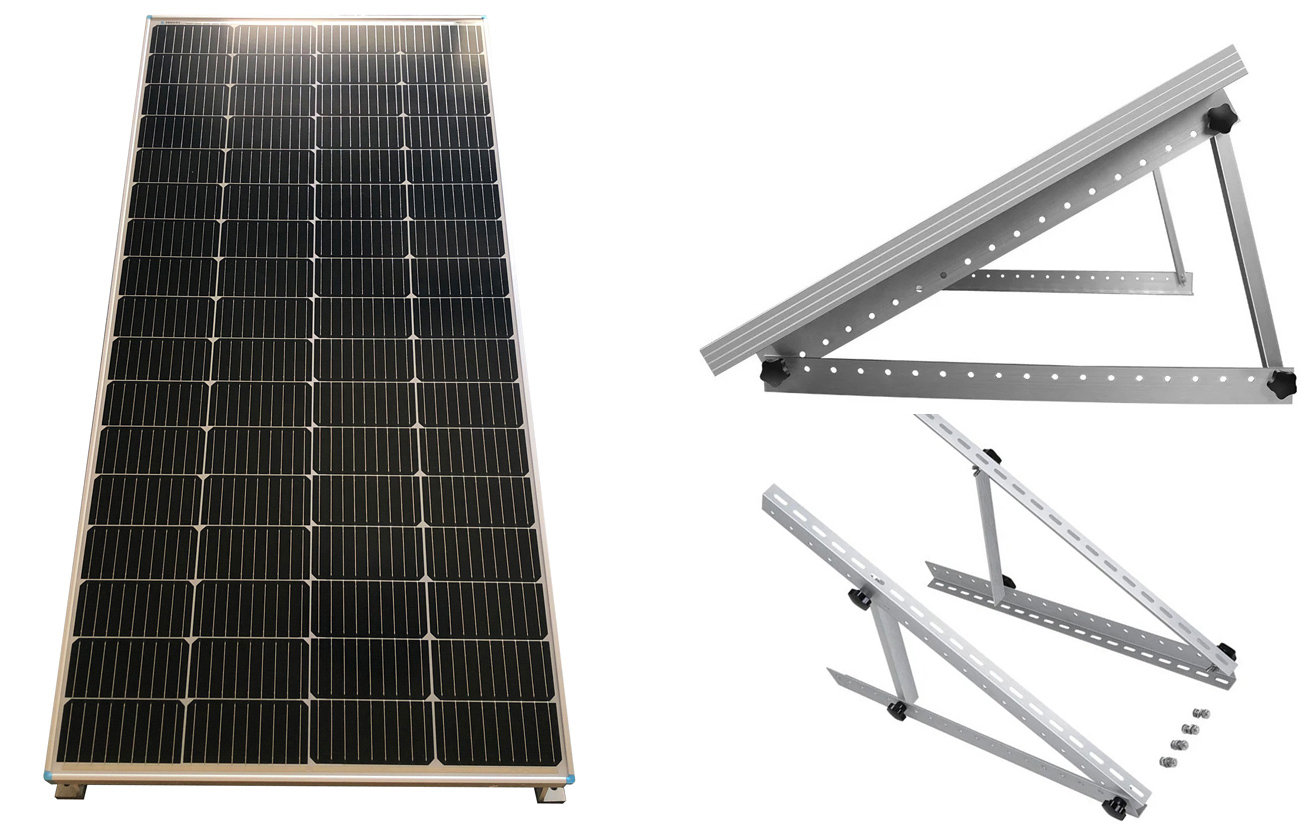

A solar panel with dettachable tilt mount for adjusting the best angle.
-
Highly efficient mono crystalline solar cells.
-
A built-in semi-solid-state LiFePO4 battery which offers safety, weather resistance capable of charging and discharging at temperatures as low as -20șC, high energy density, and a long service life of 6,000 charge-discharge cycles. 1.536kWh capacity high eno ugh to power 300kWh/year fridges for 2 days, 80W TVs for up to 19 hours or 20W notebook PCs for up to 76 hours.
- An IP67 dust and water proof Pelican Case with a fail-safe automatic pressure equalization valve. Equipped with a detachable shoulder strap for easy carrying.
-
A built-in MPPT charge controller with a nightlight function accepts solar panels with up to 100V of Voc and 260W of Pm.
-
Free "DC Home" App for monitoring power generation, charging/discharging current and SOC of the battery by smartphones available from "App Store" and "Google Play".
-
A 300W silent and power saving pure sine wave DC-AC inverter with an AC100V outlet and AC100V connectors.
-
The battery can be charged by an accessory AC charger with AC100V-240V, 50/60 Hz input.
- Various solar panels with up to 100V of Voc and 260W of Pm can be connected with MC4 Conversion Cables (sold separately).
- Dust and water proof power supply to appliances with AC100V input with AC100V Output Cables.
- Dust and water proof power supply to appliances with DC12V input with DC12V Output Cables (sold separately).
- 2 input connectors for DC Power Cables (sold separately) to double the output capacity to power appliances with power consumption up to 200W.
- IP68 dust and water proof connectors mating with solar panels, Extension Cables, AC100V Output Cables, DC12V Output Cables, DC Power Cables and MC4 Conversion Cables for weather resistant outdoor installations..
Specifications
Solar Panel Ref. SG12-M100SSM Solar cells: mono crystalline solar cells Max. power*: 100.0W (19.97V 5.01A) Open circuit voltage*: 22.79V Short circuit current*: 5.31A Operating temperature: -40 - 85șC Dimensions (WXDXH): 865X578X30mm (excl. dettachable tilt mount) Weight: approx. 5.9kg (excl. dettachable tilt mount) Output cable: 600mm output cable with MC4 connectors Safety features: a bypass diode Accessories: 5m MC4 Conversion Cable
Battery Compartment Ref. SG12-B120LIM Built-in battery: Semi-solid-state LiFePO4 battery Nominal capacity**: 1.536kWhi12.8V 120Ahj Cycle life**: 6000 cycles Max input: Voc: 100V Pm: 260W Max output: 300W (AC100V inverter outlet)
20A (DC12V charge controller terminals)
17A (DC12V dust and water proof connectors)Operating temperature (charge)***: -20 - 55șC Operating temperature (discharge)***: -20 - 60șC Dimensions (WXDXH): 387x394x260mm Weight: approx. 20.1kg (excl. battery charger) Input/output terminals: IP68 dust and water proof connector X 1 Output terminals: IP68 dust and water proof connector X 1
AC100V inverter outlet X 1
DC12V charge controller terminals X 1Safety features: 20A MPPT charge controller
20A fuse for short circuit prevention X 2Accessories: 300W pure sine wave DC-AC inverter
AC 100 - 240V battery charger
5m dust and water proof jacket cable for AC100V output
Detachable shoulder strap*Panel temperature 25șC AM1.5 1kW/m2
**0.2C rate at 25șC 80% DOD
***No freezing
Warranty 1 year Design and specifications are subject to change without notice.
Operating Instructions Manual for SG12-M100SSM Solar Panel (PDF, 4MB)
Operating Instructions Manual for SG12-B120LIM Battery Compartment (PDF, 5MB)
Price in Japan: JPY3,800
Applications
- Designed to extend the cable of SG12 Solar Panels.
Features
IP68 dust and water proof input connectors for weather resistant connection.
Specifications
Extension Cable Ref. SG12-CE Cable length: 7m Allowable current 17A
Price in Japan: JPY4,800
Applications
- 5m extension
cable designed to connect MC4 connectors of various solar panels
to SG12
Battery Compartment.
Features
- IP68 dust and water proof input connectors for weather resistant connection.
Specifications
MC4 Conversion Cable Ref. SG12-CEMC4 Cable length: 5m Allowable current 17A
Price in Japan: JPY4,800
Applications
- Dust and water proof power supply to appliances with
AC100V input (excl. SG12-B10LIM,
SG12-B30LIM
Battery Compartment).
Features
- IP68 dust and water proof input connectors for weather resistant connection.
Specifications
AC100V Output Cable Ref. SG12-COAC100V Cable length: 5m Allowable current 17A
Price in Japan: JPY2,800
Applications
- Dust and water proof power supply to appliances with
DC12V input from SG12
Battery Compartment.
Features
- IP68 dust and water proof input connectors for weather resistant connection.
Specifications
DC12V Output Cable Ref. SG12-CODC12V Cable length: 5m Allowable current 17A
Price in Japan: JPY8,800
Applications
- Designed to double the output capacity of SG12
Battery Compartment by interconnecting
2 units to power appliances with power consumption up to 200W (excl.
SG12-B10LIM, SG12-B30LIM
Battery Compartment).
Features
- IP68 dust and water proof input connectors for weather resistant connection.
Specifications
DC Power Cable Ref. SG12-CP Cable length: 2m Allowable current 17A
