Ref. SG0514MN Price in Japan: JPY6,980

Operating Instructions Manual (PDF)

Product Summary

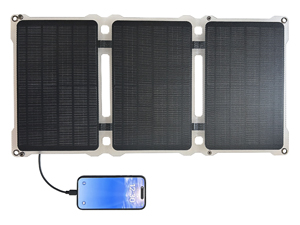

• A light yet impact resistant A3 to A4 folded solar panel for charging up to 2 mobile appliances, such as smartphones, tablets and mobile batteries by sunlight.

Applications

• A solar charger with USB output designed for charging mobile appliances, such as smartphones, tablets and mobile batteries by sunlight.


  Features

• No batteries or AC outlets necessary for safe charging and air transport all over the world.


• A light yet impact resistant A3 to A4 folded solar panel with highly efficient mono crystalline solar cells laminated with better light transmitting and long life ETFE.

• IPX5 waterproof solar panel with protected USB Ports with dust proof rubber plugs.


• 2 mobile appliances or mobile batteries can be charged simultaneously with 2 USB ports with total output current up to 2.8A.

• Ecuipped with an auto-resume charging function for fool-proof charging under unsettled weather.

• A tricolor LED indicates the charging status of the batteries.

• Materials: mono crystalline solar cells, ETFE, PET, EVA, Nylon
• Max. output*: 14.0W (DC5V 2.8A) *panel temperature 25�Ž AM1.5 1kW/m2
• Dimensions: 393X290X2.5mm (unfolded) 290X195X20mm (folded)
• Weight: approx. 410g (excl. accessories)
• Mounting holes: 4 holes
• Output terminals: 2 USB ports with dust proof rubber plugs
• Charging indicator: tricolor LED
• Safety features: DC-DC converter with auto-resume charging function
• Operating temperature: -10 - 60ºC

• Made in China

Warranty

• 1 year from the date of purchase

Design and specifications are subject to change without notice.
